WX-01

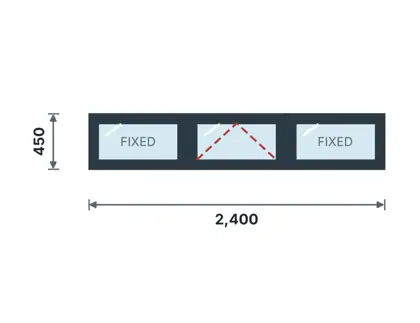

Clerestory ribbon windowFixed window
Aluminium windows · Fixed + top-hung + fixed
EssentialKES 5,400
Select · recommendedKES 8,100
ModernKES 14,000
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.
- Standard sizes
- 2400 × 450 mm
- Typical location
- High level in living rooms, offices, warehouses
- Material & construction
- Frame: Aluminium alloy 6063-T5/T6 extrusions, casement 40 series. Infill: glass – 5 mm clear float glass.
- Specification
- System: casement 40 series, frame/sash approx. 40 mm deep, wall 1.2–1.4 mm; outward-opening sashes; beaded glazing. Glazing: 5 mm clear float glass. Finish: polyester powder coat 60–80 µm (black, charcoal grey, bronze, white) or silver anodised.
- Hardware & consumables
- Stainless 4-bar friction stays (or 3 butt hinges per sash); cockspur/lever handle with lock; EPDM single seal; glazing beads + wedge gasket; corner cleats; sash restrictor on upper floors; drain covers; neutral-cure silicone sealant (perimeter, both faces); backer rod; PU expanding foam to gaps > 10 mm; plastic packers/shims; frame fixing screws + 8 mm nylon plugs.
