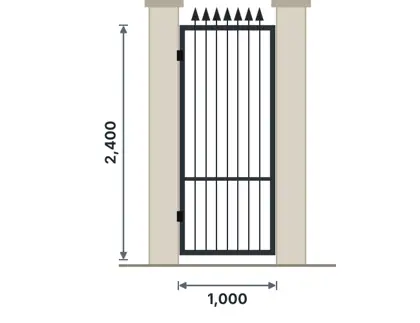

Steel gates
Swing, sliding, cantilever, bi-folding and telescopic gates in 14 patterns, automation-ready.
Homes · estates · warehouses
Engineering · Fabrication & Installation
Steel fabricated to fit and installed to last.
Steel gates, doors, windows and structural steelwork, built from 366 standard designs or your own drawings, in three quality tiers.
Overview
Every product we make has an option code. SG02H-4000x2100 is a double swing gate with a sunburst pattern, 4,000 by 2,100 mm. The code tells the workshop the type, the pattern and the size, and our fabrication manual gives the method, tolerances and quality checks for each one. You get a consistent product whether you order one gate or a hundred windows.
What we do

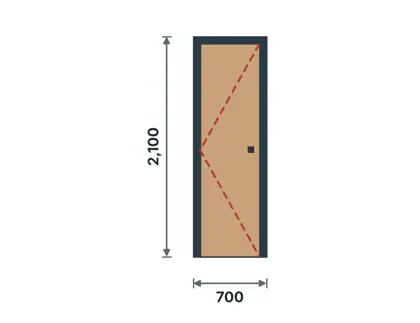

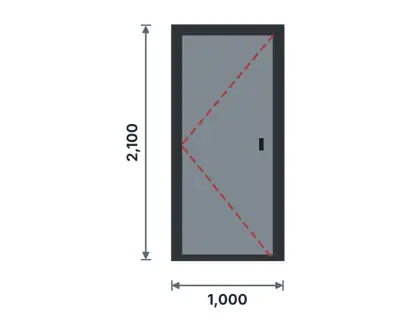

Steel doors
Single, double, glazed, security grille, pivot, louvre and warehouse sliding doors.
Homes · plant rooms · stores

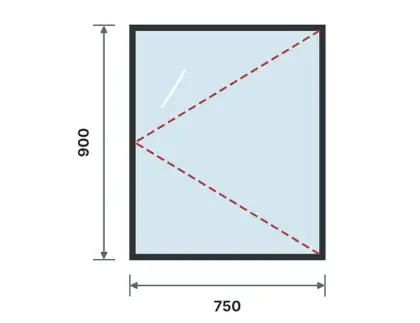

Steel windows
Casement, fixed, top-hung, louvre, arched, round and heritage slim-steel windows.
Homes · schools · offices

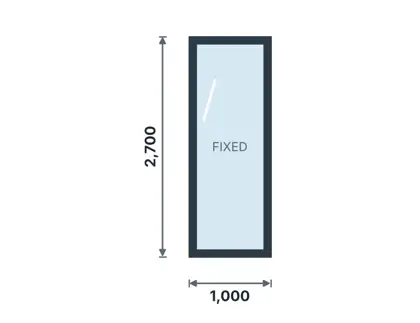

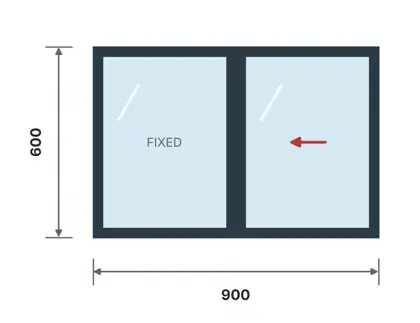

Aluminium windows, doors & partitions
Sliding and casement windows, tilt & turn, French doors, office partitions and toilet cubicles.
Offices · apartments · institutions
Structural steelwork
Frames, mezzanines, canopies, platforms and walkways.
Factories · warehouses
Pipe fabrication & supports
Pipe spools, headers, racks, hangers and equipment supports.
Fire, water and process lines
Tanks, stands & railings
Tank stands, hoppers, balustrades, ladders and handrails.
Homes · institutions · industry
Container conversion & sales
Containers converted into offices, kiosks, stores and site cabins.
Construction sites · SMEs
Steel gates9 types · 14 patterns
Steel doors12 types · 10 patterns
Steel windows12 types · 10 patterns
Aluminium windows37 standard designs
Doors36 standard designs
Partitions & cubicles18 standard designsSame design, three grades of protection
Essential
Mild steel, wire-brushed, red-oxide primer and two coats of gloss enamel (about 100 µm). Standard hinges and locks, 4 mm glass.
Budget, interior and staff quarters
Select
Grit-blasted to Sa 2½, zinc-rich epoxy primer and polyurethane top coat (about 200 µm). Heavy-duty hinges, cylinder locks, 5–6 mm glass.
Our standard recommendation
Modern
Hot-dip galvanised to ISO 1461 plus powder coat (duplex). Laminated glass, premium locks, sealed-bearing gate wheels.
Coastal sites and decades of service
Workshop quality checks on every item
- Site-measured shop drawing before cutting
- Frame size = opening − 10 mm
- Size tolerance ±2 mm; diagonals within 2 mm
- Security grille openings ≤ 125 mm
- Hot-work permit and fire watch on every weld
- Coating thickness checked with a DFT gauge
How we work
- 01
Choose
Pick a type, pattern, size and tier from the catalogue, or send your drawing.
- 02
Measure
We site-measure and issue a shop drawing for approval.
- 03
Fabricate
Cut, jig, weld, grind and coat to the method sheet.
- 04
Inspect
Dimensional, weld and coating checks signed off on the QC form.
- 05
Deliver & install
Our truck delivers; our team fixes, glazes and adjusts on site.
Questions clients ask
Do you make custom sizes?
Yes. Standard sizes are faster to price, but every order is site-measured and non-standard sizes and patterns are made with the same methods.
Which coating should I choose?
Select suits most inland sites. Choose Modern (galvanised plus powder coat) for coastal or very exposed sites.
Are your gates automation-ready?
On request, we add operator plates and cable ducts so a gate motor can be fitted later.
Serving Nairobi, Juja, Thika, Ruiru, Kiambu, Athi River, Machakos, Kajiado, Ngong, Kitengela, Nakuru, Naivasha and the rest of Kenya, with mobilisation to Kampala, Entebbe, Kigali, Dar es Salaam, Arusha on request.
Planning a project? Let's make it safe and smart.
Tell us what you need. We visit your site and send a clear written quotation.
