WS-12
Slimline panoramic sliding windowSlimline sliding
Aluminium windows · 2 large panels, 1 sliding, slim interlock
EssentialKES 62,500
Select · recommendedKES 81,800
ModernKES 120,300
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.
- Standard sizes

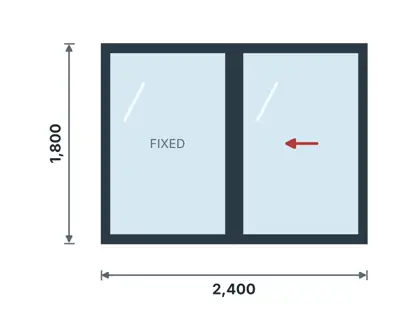

- 2400 × 1800 mm
- Typical location
- Living room view, hillside or lake view
- Material & construction
- Frame: Aluminium alloy 6063-T5/T6 extrusions, slim-interlock system. Infill: glass – 6.38 mm clear laminated safety glass (PVB interlayer) (or double glazed in Modern).
- Specification
- System: slim-interlock sliding, 20–30 mm visible interlock, wall 1.8–2.0 mm; concealed sash frames; multi-point hook locking; sash weight up to ~150 kg. Glazing: 6.38 mm clear laminated safety glass (PVB interlayer). Finish: polyester powder coat 60–80 µm (black, charcoal grey, bronze, white) or silver anodised.
- Hardware & consumables
- Stainless tandem rollers (heavy-duty); multi-point hook lock with flush pull handle; EPDM gaskets; setting & distance blocks; sill drainage with wind baffle; anti-lift and end-stop buffers; interlock brush seals; stainless screws; neutral-cure silicone sealant (perimeter, both faces); backer rod; PU expanding foam to gaps > 10 mm; plastic packers/shims; frame fixing screws + 8 mm nylon plugs.
