WS-09

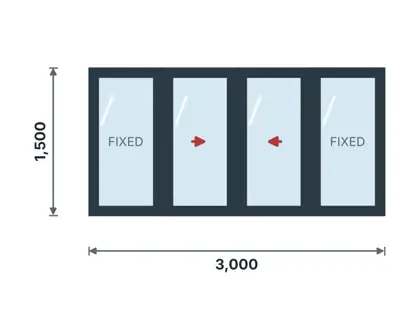

Heavy-duty 4-panel sliding windowSliding window – heavy duty
Aluminium windows · 4 panels: 2 fixed + 2 sliding
EssentialKES 38,800
Select · recommendedKES 53,300
ModernKES 84,500
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.
- Standard sizes
- 3000 × 1500 mm
- Typical location
- Living room feature
- Material & construction
- Frame: Aluminium alloy 6063-T5/T6 extrusions, heavy-duty section. Infill: glass – 6 mm tinted (bronze/grey) or reflective float glass.
- Specification
- System: heavy-duty 2/3-track sliding, frame approx. 88–100 mm deep, wall 1.4–1.6 mm; reinforced interlocks; EPDM gasket glazing. Glazing: 6 mm tinted (bronze/grey) or reflective float glass. Intermediate mullion reinforced. Finish: polyester powder coat 60–80 µm (black, charcoal grey, bronze, white) or silver anodised.
- Hardware & consumables
- Twin-wheel adjustable rollers (sealed stainless bearings); lockable hook latch, keyed alike; anti-lift blocks; fin-seal weather pile; EPDM glazing gaskets; interlock seals & end caps; drain caps with flaps; fly-screen track; corner cleats; stainless self-tapping screws; neutral-cure silicone sealant (perimeter, both faces); backer rod; PU expanding foam to gaps > 10 mm; plastic packers/shims; frame fixing screws + 8 mm nylon plugs.
