WS-07

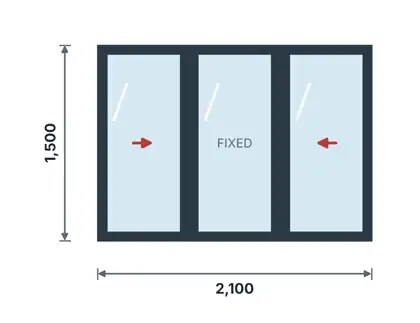

Heavy-duty 3-panel sliding windowSliding window – heavy duty
Aluminium windows · 3 panels: 2 sliding + fixed centre
EssentialKES 27,300
Select · recommendedKES 37,700
ModernKES 60,200
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.
- Standard sizes
- 2100 × 1500 mm
- Typical location
- Living room
- Material & construction
- Frame: Aluminium alloy 6063-T5/T6 extrusions, heavy-duty 3-track section. Infill: glass – 6 mm tinted (bronze/grey) or reflective float glass.
- Specification
- System: heavy-duty 2/3-track sliding, frame approx. 88–100 mm deep, wall 1.4–1.6 mm; reinforced interlocks; EPDM gasket glazing. Glazing: 6 mm tinted (bronze/grey) or reflective float glass. Finish: polyester powder coat 60–80 µm (black, charcoal grey, bronze, white) or silver anodised.
- Hardware & consumables
- Twin-wheel adjustable rollers (sealed stainless bearings); lockable hook latch, keyed alike; anti-lift blocks; fin-seal weather pile; EPDM glazing gaskets; interlock seals & end caps; drain caps with flaps; fly-screen track; corner cleats; stainless self-tapping screws; neutral-cure silicone sealant (perimeter, both faces); backer rod; PU expanding foam to gaps > 10 mm; plastic packers/shims; frame fixing screws + 8 mm nylon plugs.
