WL-05
Fixed aluminium weather louvre (vent)Aluminium louvre
Aluminium windows · Fixed 45° aluminium blades + insect mesh
EssentialKES 4,000
Select · recommendedKES 5,500
ModernKES 8,000
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.

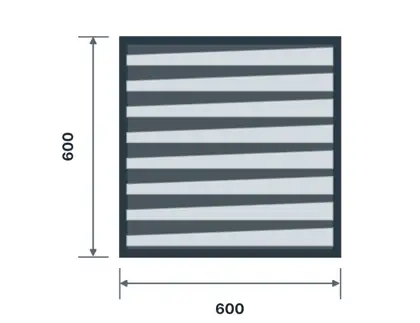

- Standard sizes
- 600 × 600 mm
- Typical location
- Generator room, meter room, gable vent
- Material & construction
- Frame: Aluminium alloy 6063-T5/T6 extrusions channel. Infill: fixed aluminium Z-blades with insect mesh.
- Specification
- System: fixed aluminium Z/S-profile weather louvre blades (~50–75 mm pitch, 45°) in aluminium channel frame; rain-shedding, with insect mesh behind. Finish: polyester powder coat 60–80 µm (black, charcoal grey, bronze, white) or silver anodised.
- Hardware & consumables
- Louvre blades; blade clips/carriers; channel frame; insect mesh + mesh retainer; pop rivets; stainless screws; neutral-cure silicone sealant (perimeter, both faces); backer rod; PU expanding foam to gaps > 10 mm; plastic packers/shims; frame fixing screws + 8 mm nylon plugs.
