WL-04
Adjustable aluminium blade louvre windowAluminium louvre
Aluminium windows · Operable aluminium blades + insect mesh
EssentialKES 4,000
Select · recommendedKES 5,600
ModernKES 9,100
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.

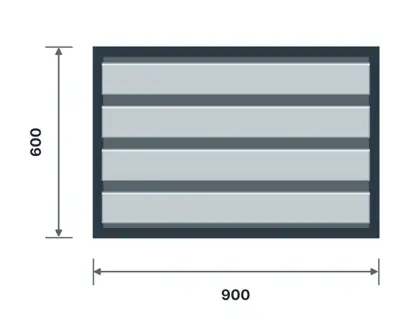

- Standard sizes
- 900 × 600 mm
- Typical location
- Kitchen, store, DSQ – secure ventilation
- Material & construction
- Frame: Aluminium alloy 6063-T5/T6 extrusions. Infill: extruded aluminium blades (no glass), insect mesh inside.
- Specification
- System: aluminium surround with operable extruded aluminium blades (~100–150 mm, 1.2–1.5 mm) on pivot clips, linked by a connector bar; closes flat for privacy and security. Finish: polyester powder coat 60–80 µm (black, charcoal grey, bronze, white) or silver anodised.
- Hardware & consumables
- Extruded aluminium blades; nylon pivot clips; connector bar & operator handle with lock; surround frame; insect mesh (aluminium/fibreglass) on inside; stainless screws & rivets; neutral-cure silicone sealant (perimeter, both faces); backer rod; PU expanding foam to gaps > 10 mm; plastic packers/shims; frame fixing screws + 8 mm nylon plugs.
