WL-03

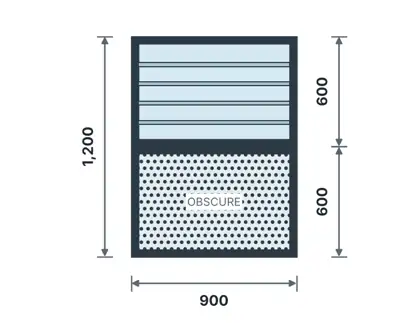

Fixed obscure glass + glass louvre combinationLouvre window
Aluminium windows · Fixed obscure light below + glass louvre above
EssentialKES 6,500
Select · recommendedKES 9,700
ModernKES 16,600
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.
- Standard sizes
- 900 × 1200 mm
- Typical location
- Bathroom (privacy + ventilation)
- Material & construction
- Frame: Aluminium alloy 6063-T5/T6 extrusions surround with transom. Infill: 4–5 mm obscure (frosted/patterned) glass for privacy (fixed) and 6 mm clear or obscure glass louvre blades, ~150 mm wide, ground/polished edges.
- Specification
- System: aluminium louvre galleries (blade carriers) in aluminium surround frame; blades adjusted together by lever operator. Glazing: 6 mm clear or obscure glass louvre blades, ~150 mm wide, ground/polished edges. Lower light fixed, obscure glass. Finish: polyester powder coat 60–80 µm (black, charcoal grey, bronze, white) or silver anodised.
- Hardware & consumables
- Louvre gallery pairs (left/right); lever operator with locking clip; blade clips; glass blades; blade end caps; surround frame & corner screws; optional fly screen; neutral-cure silicone sealant (perimeter, both faces); backer rod; PU expanding foam to gaps > 10 mm; plastic packers/shims; frame fixing screws + 8 mm nylon plugs.
