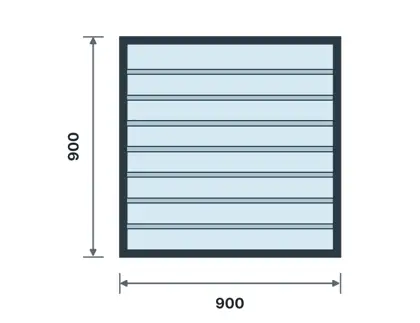

WL-02
Glass louvre windowLouvre window
Aluminium windows · Glass blades in aluminium galleries
EssentialKES 4,900
Select · recommendedKES 7,400
ModernKES 12,800
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.
- Standard sizes
- 900 × 900 mm
- Typical location
- Bathroom, laundry, store
- Material & construction
- Frame: Aluminium alloy 6063-T5/T6 extrusions surround with aluminium galleries. Infill: 6 mm clear or obscure glass louvre blades, ~150 mm wide, ground/polished edges.
- Specification
- System: aluminium louvre galleries (blade carriers) in aluminium surround frame; blades adjusted together by lever operator. Glazing: 6 mm clear or obscure glass louvre blades, ~150 mm wide, ground/polished edges. Finish: polyester powder coat 60–80 µm (black, charcoal grey, bronze, white) or silver anodised.
- Hardware & consumables
- Louvre gallery pairs (left/right); lever operator with locking clip; blade clips; glass blades; blade end caps; surround frame & corner screws; optional fly screen; neutral-cure silicone sealant (perimeter, both faces); backer rod; PU expanding foam to gaps > 10 mm; plastic packers/shims; frame fixing screws + 8 mm nylon plugs.

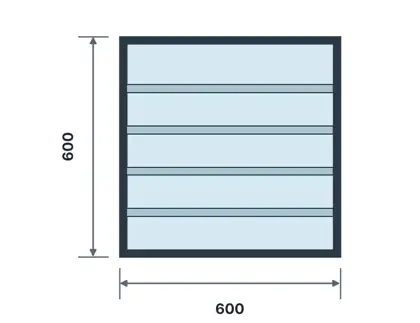

Other patterns of this glass louvre window
