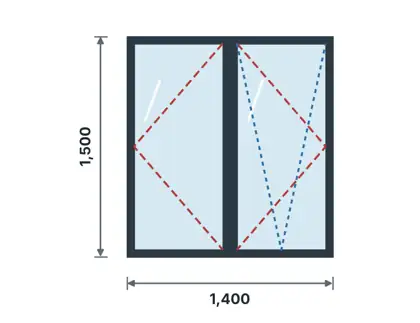

WH-02
Tilt & turn + turn-only pairTilt & turn window
Aluminium windows · 1 tilt & turn sash + 1 turn-only sash
EssentialKES 36,600
Select · recommendedKES 51,200
ModernKES 72,000
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.
- Standard sizes
- 1400 × 1500 mm
- Typical location
- Living room, master bedroom
- Material & construction
- Frame: Aluminium alloy 6063-T5/T6 extrusions, thermal-break system. Infill: glass – 24 mm double-glazed unit (6 mm toughened – 12 mm air/argon – 6 mm laminated), low-E option.
- Specification
- System: thermal-break 60–70 series with polyamide strips, wall 1.6–2.0 mm; 3 EPDM seals; inward-opening tilt & turn sashes. Glazing: 24 mm double-glazed unit (6 mm toughened – 12 mm air/argon – 6 mm laminated), low-E option. Finish: polyester powder coat 60–80 µm (black, charcoal grey, bronze, white) or silver anodised.
- Hardware & consumables
- Tilt & turn gear set (corner drives, scissor arm, multi-point mushroom cams); lockable handle; 3 EPDM seals; IGU setting blocks; crimp corner cleats + corner adhesive; misoperation device; drainage caps; neutral-cure silicone sealant (perimeter, both faces); backer rod; PU expanding foam to gaps > 10 mm; plastic packers/shims; frame fixing screws + 8 mm nylon plugs. Second sash: turn-only gear with shoot bolts.
