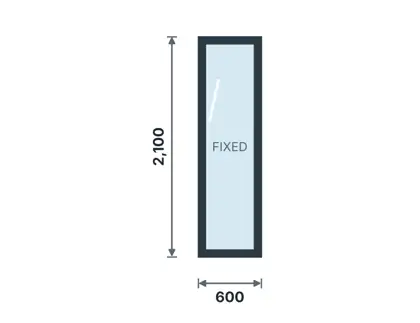

WF-02 Fixed side light technical drawing, viewed from outside
Drawing viewed from outside · dimensions in mm

WF-02

Fixed side lightFixed window

Aluminium windows · Fixed glazing

EssentialKES 6,300
Select · recommendedKES 9,500
ModernKES 16,400

Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.

Standard sizes
600 × 2100 mm
Typical location
Beside entrance door
Material & construction
Frame: Aluminium alloy 6063-T5/T6 extrusions, shopfront box section. Infill: glass – 6 mm clear toughened safety glass.
Specification
System: shopfront box section 44.5 × 101.6 mm (1¾" × 4") perimeter with 44.5 × 50.8 mm (1¾" × 2") intermediates; snap-in glazing beads; wall 1.2–1.6 mm. Glazing: 6 mm clear toughened safety glass. Finish: polyester powder coat 60–80 µm (black, charcoal grey, bronze, white) or silver anodised.
Hardware & consumables
Box-section frame & intermediates; shear blocks/transom clips; snap-in beads; wedge gaskets; hammer-fix anchors to floor, ceiling and walls; end caps; silicone sealant.
