WC-09

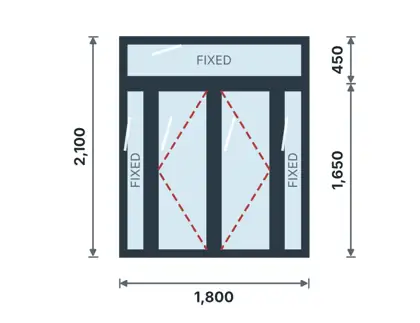

French casement with fixed fanlight (50 series)Casement window
Aluminium windows · 2 casements + fixed side lights + fixed fanlight
EssentialKES 28,900
Select · recommendedKES 42,800
ModernKES 71,500
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.
- Standard sizes
- 1800 × 2100 mm
- Typical location
- Living room, verandah
- Material & construction
- Frame: Aluminium alloy 6063-T5/T6 extrusions, Euro-groove 50 series. Infill: glass – 6 mm clear toughened safety glass.
- Specification
- System: Euro-groove casement 50 series, wall 1.4–1.6 mm; double EPDM seals; crimped and glued corners; beaded glazing. Glazing: 6 mm clear toughened safety glass. Finish: polyester powder coat 60–80 µm (black, charcoal grey, bronze, white) or silver anodised.
- Hardware & consumables
- Espagnolette multi-point lock with keyed handle; 3D-adjustable hinges or stainless friction stays; double EPDM gaskets; setting & distance blocks; crimp corner cleats + two-part corner adhesive; drainage caps; restrictors; neutral-cure silicone sealant (perimeter, both faces); backer rod; PU expanding foam to gaps > 10 mm; plastic packers/shims; frame fixing screws + 8 mm nylon plugs.
