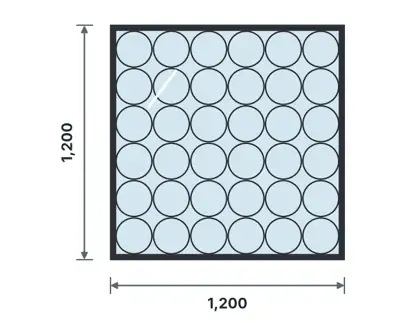

SW06-J
Fixed steel windowRings / circles
Steel windows · Single fixed light
EssentialKES 5,700
Select · recommendedKES 7,500
ModernKES 11,400
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.
- Standard sizes
- 450×1800, 600×600, 600×2100, 900×900, 900×1500, 1200×1200, 1200×2400, 1500×1200, 1800×1500, 2400×1500 (10 options)
- Material & construction
- Frame: Window frame section 32 mild steel; grille: Flat bar 25x5 (rings / circles) welded to frame. Glazing: 5 mm clear (Essential/Select) / 6.38 mm laminated (Modern); safety glass if within 800 mm of floor.
- Specification
- Fixed steel window – Single fixed light. Frame size = opening − 10 mm. Sash clearance 2–3 mm. Grille openings ≤ 125 mm. Tolerances: size ±2 mm, diagonals ≤ 2 mm. Coating per tier (see Tier Guide).
- Hardware & consumables
- Glazing clips/beads, setting blocks. Glazing putty or glazing silicone, setting blocks, glazing clips. Welding consumables (MIG wire ER70S-6 0.8–1.0 mm + CO₂/Ar gas, or E6013 electrodes 2.5/3.2 mm); grinding & flap discs (80/120 grit); cutting discs; degreaser/thinner; primer and finish coats per tier; hole caps/end plugs for hollow sections; masonry lugs (25 × 3 flat, fish-tailed) or M10 sleeve/chemical anchors; cement-sand mortar or sealant for building-in; packers.
Other patterns of this fixed steel window
