SG09-M

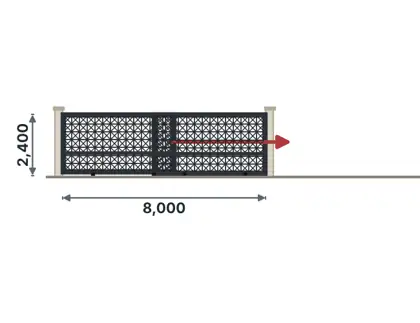

Telescopic sliding gateKenyan box & cross

Steel gates · 2 leaves sliding together to one side

Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.

Standard sizes

5000×2100, 6000×2100, 6000×2400, 7000×2400, 8000×2400, 9000×2400, 10000×2400, 7000×2100 (8 options)

Material & construction

Leaf frame: RHS 100x50x2.0 with mid-rails and bracing; infill: kenyan box & cross in SHS 20x20x1.5.

Specification

Telescopic sliding gate – 2 leaves sliding together to one side. Ground clearance 50 mm (swing); infill gaps ≤ 100 mm where security needed. Tolerances: diagonals ≤ 3 mm, leaf flatness ≤ 3 mm. Automation-ready on request. Coating per tier.

Hardware & consumables

Twin-track wheels (2 sets); top guide carriage; synchronising rope/pulley kit; end stoppers; lock. Welding consumables (MIG wire ER70S-6 0.8–1.0 mm + CO₂/Ar gas, or E6013 electrodes 2.5/3.2 mm); grinding & flap discs (80/120 grit); cutting discs; degreaser/thinner; primer and finish coats per tier; hole caps/end plugs for hollow sections; masonry lugs (25 × 3 flat, fish-tailed) or M10 sleeve/chemical anchors; cement-sand mortar or sealant for building-in; packers.
