SG08-H

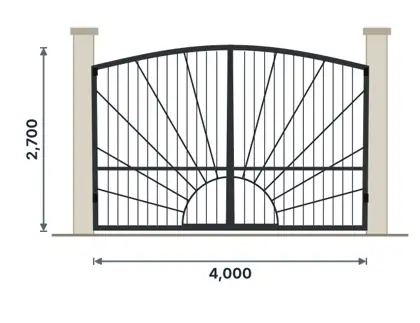

Arched-top double gateSunburst
Steel gates · 2 leaves with rising arched top
EssentialKES 57,100
Select · recommendedKES 76,800
ModernKES 113,200
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.
- Standard sizes
- 3000×2400, 3600×2400, 3600×2700, 4000×2400, 4000×2700, 4500×2700, 5000×3000, 6000×3000 (8 options)
- Material & construction
- Leaf frame: SHS 50x50x2.0 with mid-rails and bracing; infill: sunburst in Flat bar 40x6.
- Specification
- Arched-top double gate – 2 leaves with rising arched top. Ground clearance 50 mm (swing); infill gaps ≤ 100 mm where security needed. Tolerances: diagonals ≤ 3 mm, leaf flatness ≤ 3 mm. Automation-ready on request. Coating per tier.
- Hardware & consumables
- 3 bullet hinges per leaf; drop bolts; lock; stops; optional finials. Welding consumables (MIG wire ER70S-6 0.8–1.0 mm + CO₂/Ar gas, or E6013 electrodes 2.5/3.2 mm); grinding & flap discs (80/120 grit); cutting discs; degreaser/thinner; primer and finish coats per tier; hole caps/end plugs for hollow sections; masonry lugs (25 × 3 flat, fish-tailed) or M10 sleeve/chemical anchors; cement-sand mortar or sealant for building-in; packers.
