SG07-F

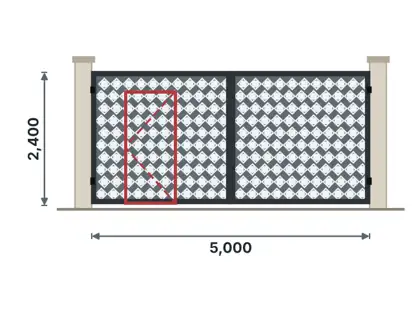

Double gate with wicket doorLaser-cut decorative panel
Steel gates · 2 leaves; pedestrian wicket door built into one leaf
EssentialKES 88,600
Select · recommendedKES 117,400
ModernKES 169,100
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.
- Standard sizes
- 3600×2400, 4000×2400, 4000×2700, 4500×2400, 5000×2400, 5000×2700, 6000×2400, 6000×3000 (8 options)
- Material & construction
- Leaf frame: SHS 50x50x2.0 with mid-rails and bracing; infill: laser-cut decorative panel + Laser-cut sheet 2.0 mm.
- Specification
- Double gate with wicket door – 2 leaves; pedestrian wicket door built into one leaf. Ground clearance 50 mm (swing); infill gaps ≤ 100 mm where security needed. Tolerances: diagonals ≤ 3 mm, leaf flatness ≤ 3 mm. Automation-ready on request. Coating per tier.
- Hardware & consumables
- 3 bullet hinges per leaf; wicket door hinges + lock; drop bolts; leaf lock; stops. Welding consumables (MIG wire ER70S-6 0.8–1.0 mm + CO₂/Ar gas, or E6013 electrodes 2.5/3.2 mm); grinding & flap discs (80/120 grit); cutting discs; degreaser/thinner; primer and finish coats per tier; hole caps/end plugs for hollow sections; masonry lugs (25 × 3 flat, fish-tailed) or M10 sleeve/chemical anchors; cement-sand mortar or sealant for building-in; packers.
Other patterns of this double gate with wicket door
