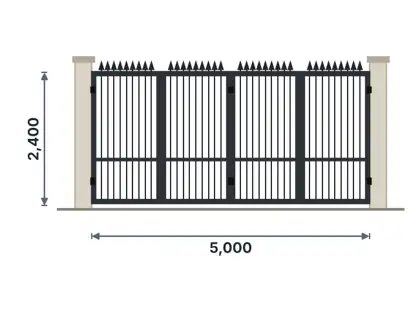

SG06-A
Bi-folding gateSpear-top vertical bars
Steel gates · 4 leaves folding in pairs
EssentialKES 86,300
Select · recommendedKES 116,300
ModernKES 169,500
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.
- Standard sizes
- 3600×2100, 4000×2100, 4000×2400, 5000×2400, 6000×2400, 7000×2400 (6 options)
- Material & construction
- Leaf frame: SHS 40x40x2.0 with mid-rails and bracing; infill: spear-top vertical bars in Square bar 16.
- Specification
- Bi-folding gate – 4 leaves folding in pairs. Ground clearance 50 mm (swing); infill gaps ≤ 100 mm where security needed. Tolerances: diagonals ≤ 3 mm, leaf flatness ≤ 3 mm. Automation-ready on request. Coating per tier.
- Hardware & consumables
- Bullet hinges post-to-leaf and leaf-to-leaf (3 per joint); top guide track or bottom wheel on folding leaves; drop bolts; lock. Welding consumables (MIG wire ER70S-6 0.8–1.0 mm + CO₂/Ar gas, or E6013 electrodes 2.5/3.2 mm); grinding & flap discs (80/120 grit); cutting discs; degreaser/thinner; primer and finish coats per tier; hole caps/end plugs for hollow sections; masonry lugs (25 × 3 flat, fish-tailed) or M10 sleeve/chemical anchors; cement-sand mortar or sealant for building-in; packers.

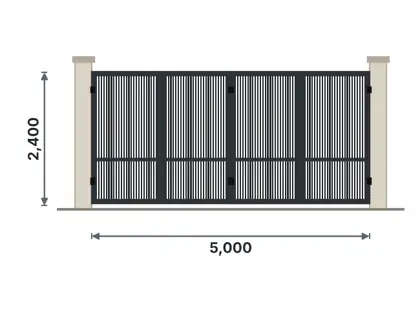

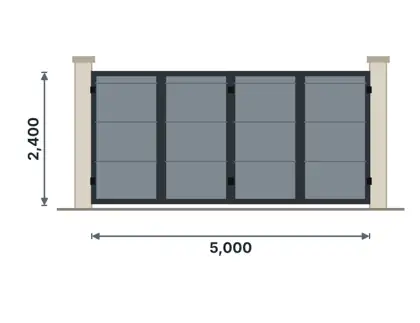

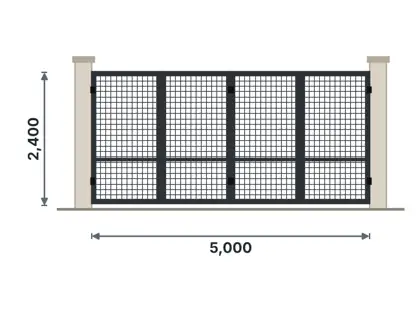

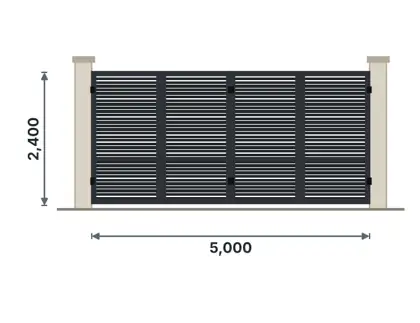

Other patterns of this bi-folding gate
