SG04-J

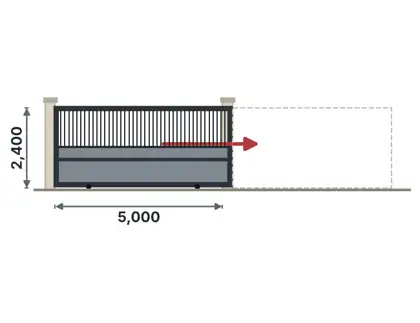

Sliding gate on trackSheet base + bars above

Steel gates · 1 leaf rolling on V-groove wheels along a ground track

Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.

Standard sizes

3000×1800, 3600×2100, 4000×2100, 4000×2400, 4500×2400, 5000×2400, 5500×2400, 6000×2400, 7000×2400, 8000×2400 (10 options)

Material & construction

Leaf frame: RHS 100x50x2.0 with mid-rails and bracing; infill: sheet base + bars above in Square bar 16 + Sheet 1.5 mm.

Specification

Sliding gate on track – 1 leaf rolling on V-groove wheels along a ground track. Ground clearance 50 mm (swing); infill gaps ≤ 100 mm where security needed. Tolerances: diagonals ≤ 3 mm, leaf flatness ≤ 3 mm. Automation-ready on request. Coating per tier.

Hardware & consumables

2–3 V-groove wheels 80–120 mm with sealed bearings; inverted-angle track 40 × 40 (or 16 mm round bar) embedded; top guide rollers on post; end stopper; catch post; gate lock. Welding consumables (MIG wire ER70S-6 0.8–1.0 mm + CO₂/Ar gas, or E6013 electrodes 2.5/3.2 mm); grinding & flap discs (80/120 grit); cutting discs; degreaser/thinner; primer and finish coats per tier; hole caps/end plugs for hollow sections; masonry lugs (25 × 3 flat, fish-tailed) or M10 sleeve/chemical anchors; cement-sand mortar or sealant for building-in; packers.
