SG03-L

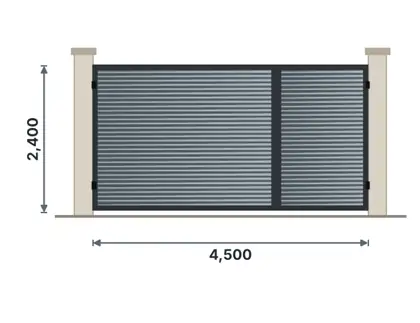

Unequal double gate (car + pedestrian)Louvred slats

Steel gates · Vehicle leaf ≈ 2/3 + pedestrian leaf ≈ 1/3

Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.

Standard sizes

3600×2100, 4000×2100, 4000×2400, 4500×2100, 4500×2400, 5000×2400, 5400×2400, 6000×2400 (8 options)

Material & construction

Leaf frame: SHS 50x50x2.0 with mid-rails and bracing; infill: louvred slats + Sheet 1.2 mm.

Specification

Unequal double gate (car + pedestrian) – Vehicle leaf ≈ 2/3 + pedestrian leaf ≈ 1/3. Ground clearance 50 mm (swing); infill gaps ≤ 100 mm where security needed. Tolerances: diagonals ≤ 3 mm, leaf flatness ≤ 3 mm. Automation-ready on request. Coating per tier.

Hardware & consumables

3 bullet hinges per leaf; lock on pedestrian leaf; drop bolts on vehicle leaf; stops. Welding consumables (MIG wire ER70S-6 0.8–1.0 mm + CO₂/Ar gas, or E6013 electrodes 2.5/3.2 mm); grinding & flap discs (80/120 grit); cutting discs; degreaser/thinner; primer and finish coats per tier; hole caps/end plugs for hollow sections; masonry lugs (25 × 3 flat, fish-tailed) or M10 sleeve/chemical anchors; cement-sand mortar or sealant for building-in; packers.
