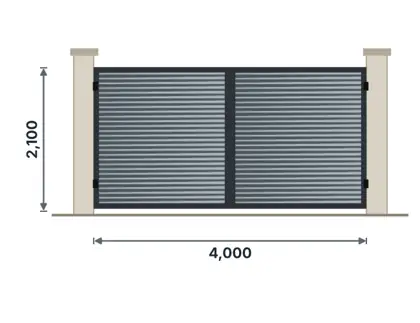

SG02-L
Double swing driveway gateLouvred slats
Steel gates · 2 equal hinged leaves
EssentialKES 57,700
Select · recommendedKES 77,600
ModernKES 114,300
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.
- Standard sizes
- 3000×1800, 3000×2100, 3600×1800, 3600×2100, 3600×2400, 4000×2100, 4000×2400, 4500×2400, 5000×2400, 6000×2400 (10 options)
- Material & construction
- Leaf frame: SHS 50x50x2.0 with mid-rails and bracing; infill: louvred slats + Sheet 1.2 mm.
- Specification
- Double swing driveway gate – 2 equal hinged leaves. Ground clearance 50 mm (swing); infill gaps ≤ 100 mm where security needed. Tolerances: diagonals ≤ 3 mm, leaf flatness ≤ 3 mm. Automation-ready on request. Coating per tier.
- Hardware & consumables
- 3 heavy-duty bullet hinges 25 mm per leaf; centre drop bolts (2) into floor sleeves; gate lock/hasp; centre stop; open-position stays. Welding consumables (MIG wire ER70S-6 0.8–1.0 mm + CO₂/Ar gas, or E6013 electrodes 2.5/3.2 mm); grinding & flap discs (80/120 grit); cutting discs; degreaser/thinner; primer and finish coats per tier; hole caps/end plugs for hollow sections; masonry lugs (25 × 3 flat, fish-tailed) or M10 sleeve/chemical anchors; cement-sand mortar or sealant for building-in; packers.
Other patterns of this double swing driveway gate
