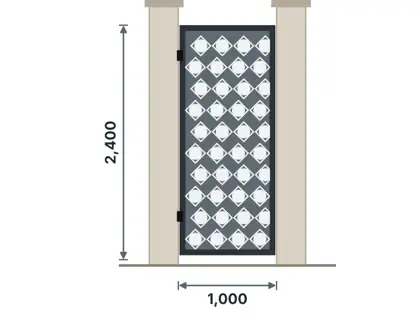

SG01-F
Pedestrian swing gateLaser-cut decorative panel
Steel gates · 1 hinged leaf
EssentialKES 18,500
Select · recommendedKES 25,200
ModernKES 38,500
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.
- Standard sizes
- 900×1800, 900×2100, 900×2400, 1000×1800, 1000×2100, 1000×2400, 1200×1800, 1200×2100, 1200×2400, 1500×2100 (10 options)
- Material & construction
- Leaf frame: SHS 40x40x2.0 with mid-rails and bracing; infill: laser-cut decorative panel + Laser-cut sheet 2.0 mm.
- Specification
- Pedestrian swing gate – 1 hinged leaf. Ground clearance 50 mm (swing); infill gaps ≤ 100 mm where security needed. Tolerances: diagonals ≤ 3 mm, leaf flatness ≤ 3 mm. Automation-ready on request. Coating per tier.
- Hardware & consumables
- 2–3 heavy-duty barrel (bullet) hinges 20 mm; gate lock or padlock hasp; drop bolt; gate stop; handle. Welding consumables (MIG wire ER70S-6 0.8–1.0 mm + CO₂/Ar gas, or E6013 electrodes 2.5/3.2 mm); grinding & flap discs (80/120 grit); cutting discs; degreaser/thinner; primer and finish coats per tier; hole caps/end plugs for hollow sections; masonry lugs (25 × 3 flat, fish-tailed) or M10 sleeve/chemical anchors; cement-sand mortar or sealant for building-in; packers.
Other patterns of this pedestrian swing gate
