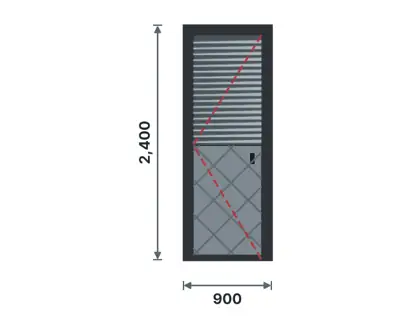

SD11-F
Steel louvre doorDiamond embossed
Steel doors · Leaf with fixed steel louvres (ventilation) + pattern panel
EssentialKES 25,800
Select · recommendedKES 35,000
ModernKES 54,500
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.
- Standard sizes
- 700×2100, 750×2100, 800×2100, 900×2100, 900×2400, 1200×2100, 1500×2100, 1800×2100 (8 options)
- Material & construction
- Frame: RHS 60x40x2.0; leaf frame: RHS 50x25x1.5; skins: Sheet 1.5 mm × 1 face(s); decoration/grille: diamond embossed in Flat bar 25x5.
- Specification
- Steel louvre door – Leaf with fixed steel louvres (ventilation) + pattern panel. Frame = opening − 10 mm; leaf gaps 3 mm sides/top, 8–10 mm bottom; lock rail at 1000 mm. Tolerances: diagonals ≤ 3 mm, leaf flatness ≤ 2 mm/m. Coating per tier.
- Hardware & consumables
- 3 hinges; lock or padlock hasp; lever handle; insect mesh behind louvres; door stop. Welding consumables (MIG wire ER70S-6 0.8–1.0 mm + CO₂/Ar gas, or E6013 electrodes 2.5/3.2 mm); grinding & flap discs (80/120 grit); cutting discs; degreaser/thinner; primer and finish coats per tier; hole caps/end plugs for hollow sections; masonry lugs (25 × 3 flat, fish-tailed) or M10 sleeve/chemical anchors; cement-sand mortar or sealant for building-in; packers.
