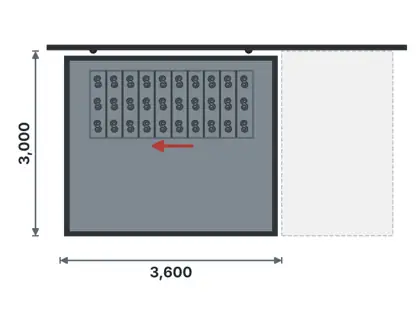

SD10-I

Steel sliding warehouse doorOrnamental scroll

Steel doors · Top-hung sliding leaf (1 or 2) on track

Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.

Standard sizes

2400×2400, 3000×2400, 3000×3000, 3600×3000, 4000×3500, 4500×4000, 5000×4500, 6000×5000 (8 options)

Material & construction

Frame: Angle 40x40x4; leaf frame: RHS 80x40x2.0; skins: Sheet 1.2 mm × 1 face(s); decoration/grille: ornamental scroll in Flat bar 25x5.

Specification

Steel sliding warehouse door – Top-hung sliding leaf (1 or 2) on track. Frame = opening − 10 mm; leaf gaps 3 mm sides/top, 8–10 mm bottom; lock rail at 1000 mm. Tolerances: diagonals ≤ 3 mm, leaf flatness ≤ 2 mm/m. Coating per tier.

Hardware & consumables

Top track (box or I-track) + 2 trolley hangers per leaf; bottom guide rollers/channel; end stops; padlock hasp; pull handles. Welding consumables (MIG wire ER70S-6 0.8–1.0 mm + CO₂/Ar gas, or E6013 electrodes 2.5/3.2 mm); grinding & flap discs (80/120 grit); cutting discs; degreaser/thinner; primer and finish coats per tier; hole caps/end plugs for hollow sections; masonry lugs (25 × 3 flat, fish-tailed) or M10 sleeve/chemical anchors; cement-sand mortar or sealant for building-in; packers.
