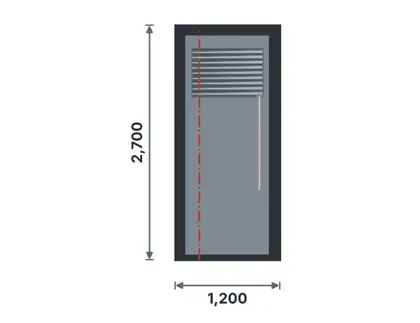

SD09-J
Steel pivot entrance doorLouvred band
Steel doors · 1 large pivoting leaf, double skin
EssentialKES 85,300
Select · recommendedKES 118,600
ModernKES 181,100
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.
- Standard sizes
- 1000×2400, 1000×2700, 1100×2400, 1200×2400, 1200×2700, 1400×2700, 1500×3000, 1600×3000, 1800×3000 (9 options)
- Material & construction
- Frame: RHS 80x40x2.0; leaf frame: RHS 60x40x2.0; skins: Sheet 1.5 mm × 2 face(s); decoration/grille: louvred band in Angle 25x25x3.
- Specification
- Steel pivot entrance door – 1 large pivoting leaf, double skin. Frame = opening − 10 mm; leaf gaps 3 mm sides/top, 8–10 mm bottom; lock rail at 1000 mm. Tolerances: diagonals ≤ 3 mm, leaf flatness ≤ 2 mm/m. Coating per tier.
- Hardware & consumables
- Floor pivot (≥ 300 kg) + top pivot; multi-point lock; full-height pull handle 1200–1800 mm; drop seal; perimeter seals. Welding consumables (MIG wire ER70S-6 0.8–1.0 mm + CO₂/Ar gas, or E6013 electrodes 2.5/3.2 mm); grinding & flap discs (80/120 grit); cutting discs; degreaser/thinner; primer and finish coats per tier; hole caps/end plugs for hollow sections; masonry lugs (25 × 3 flat, fish-tailed) or M10 sleeve/chemical anchors; cement-sand mortar or sealant for building-in; packers.
Other patterns of this steel pivot entrance door
