SD05-J

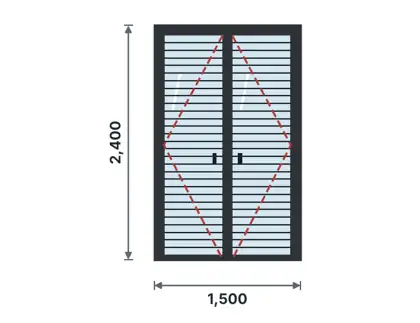

Slim-steel glazed French doorsClose horizontal bars

Steel doors · 2 fully glazed leaves with glazing-bar options

Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.

Standard sizes

1200×2100, 1500×2100, 1800×2100, 1200×2400, 1500×2400, 1800×2400, 2100×2400, 2400×2400, 2400×2700 (9 options)

Material & construction

Frame: RHS 60x40x2.0; leaf frame: SHS 40x40x2.0; decoration/grille: close horizontal bars in Angle 25x25x3. Glazing: 5 mm (Essential) / 6 mm toughened (Select) / 6.38 mm laminated (Modern).

Specification

Slim-steel glazed French doors – 2 fully glazed leaves with glazing-bar options. Frame = opening − 10 mm; leaf gaps 3 mm sides/top, 8–10 mm bottom; lock rail at 1000 mm. Tolerances: diagonals ≤ 3 mm, leaf flatness ≤ 2 mm/m. Coating per tier.

Hardware & consumables

3–4 hinges per leaf (lift-off or concealed); multi-point lock or mortice lock + flush bolts; slim lever handles; glazing beads; EPDM or silicone glazing. Welding consumables (MIG wire ER70S-6 0.8–1.0 mm + CO₂/Ar gas, or E6013 electrodes 2.5/3.2 mm); grinding & flap discs (80/120 grit); cutting discs; degreaser/thinner; primer and finish coats per tier; hole caps/end plugs for hollow sections; masonry lugs (25 × 3 flat, fish-tailed) or M10 sleeve/chemical anchors; cement-sand mortar or sealant for building-in; packers.
