SD04-F

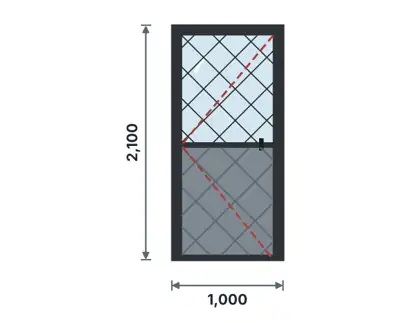

Semi-glazed steel doorDiamond embossed + diamond grille glazing

Steel doors · 1 leaf: glass with grille above lock rail, sheet below

Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.

Standard sizes

750×2100, 800×2100, 850×2100, 900×2100, 1000×2100, 1100×2100, 900×2400, 1000×2400, 1100×2400 (9 options)

Material & construction

Frame: RHS 60x40x2.0; leaf frame: RHS 50x25x1.5; skins: Sheet 1.5 mm × 1 face(s); decoration/grille: diamond embossed + diamond grille glazing in Flat bar 25x5. Glazing: 5 mm (Essential) / 6 mm toughened (Select) / 6.38 mm laminated (Modern).

Specification

Semi-glazed steel door – 1 leaf: glass with grille above lock rail, sheet below. Frame = opening − 10 mm; leaf gaps 3 mm sides/top, 8–10 mm bottom; lock rail at 1000 mm. Tolerances: diagonals ≤ 3 mm, leaf flatness ≤ 2 mm/m. Coating per tier.

Hardware & consumables

3 hinges; mortice lock + cylinder; lever set; glazing angle/beads 15 × 15; glass setting blocks; door stop. Welding consumables (MIG wire ER70S-6 0.8–1.0 mm + CO₂/Ar gas, or E6013 electrodes 2.5/3.2 mm); grinding & flap discs (80/120 grit); cutting discs; degreaser/thinner; primer and finish coats per tier; hole caps/end plugs for hollow sections; masonry lugs (25 × 3 flat, fish-tailed) or M10 sleeve/chemical anchors; cement-sand mortar or sealant for building-in; packers.
