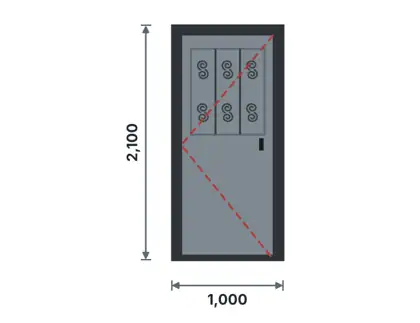

SD01-I
Single steel doorOrnamental scroll
Steel doors · 1 hinged leaf, double-skin sheet
EssentialKES 42,700
Select · recommendedKES 56,200
ModernKES 83,300
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.
- Standard sizes
- 700×2100, 750×2100, 800×2100, 850×2100, 900×2100, 1000×2100, 900×2400, 1000×2400, 1100×2400, 1200×2400 (10 options)
- Material & construction
- Frame: RHS 60x40x2.0; leaf frame: RHS 50x25x1.5; skins: Sheet 1.5 mm × 2 face(s); decoration/grille: ornamental scroll in Flat bar 25x5.
- Specification
- Single steel door – 1 hinged leaf, double-skin sheet. Frame = opening − 10 mm; leaf gaps 3 mm sides/top, 8–10 mm bottom; lock rail at 1000 mm. Tolerances: diagonals ≤ 3 mm, leaf flatness ≤ 2 mm/m. Coating per tier.
- Hardware & consumables
- 3 heavy-duty butt or barrel hinges 100–125 mm; mortice lock with cylinder + 3 keys; lever handle set; tower bolt (inside); door stop; weather bar. Welding consumables (MIG wire ER70S-6 0.8–1.0 mm + CO₂/Ar gas, or E6013 electrodes 2.5/3.2 mm); grinding & flap discs (80/120 grit); cutting discs; degreaser/thinner; primer and finish coats per tier; hole caps/end plugs for hollow sections; masonry lugs (25 × 3 flat, fish-tailed) or M10 sleeve/chemical anchors; cement-sand mortar or sealant for building-in; packers.
Other patterns of this single steel door
