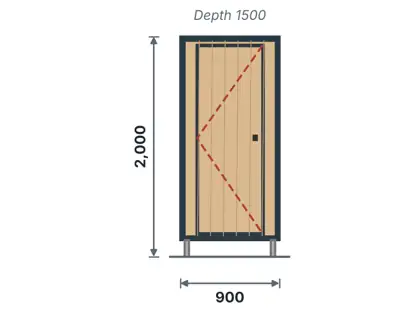

PT-04 Toilet cubicle – aluminium frame + MDF technical drawing, viewed from outside
Drawing viewed from outside · dimensions in mm

PT-04

Toilet cubicle – aluminium frame + MDFToilet cubicle

Partitions & cubicles · Width × depth; 2000 high

EssentialKES 25,000
Select · recommendedKES 40,000
ModernKES 65,000

Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.

Standard sizes
900 × 1500 mm
Typical location
Budget washrooms, DSQ, site offices
Material & construction
Frame: aluminium box section. Panels: moisture-resistant MDF, melamine-faced both sides.
Specification
Aluminium posts & rails; MR-MDF 16–18 mm panels; door in aluminium stiles. Keep off wet floor with aluminium foot channel.
Hardware & consumables
Aluminium posts & rails; MR-MDF panels; aluminium door hinges; barrel bolt/indicator lock; coat hook; anchors; silicone.
