PM-01
Aluminium partition – full MDF infillAluminium partition – MDF infill
Partitions & cubicles · 1 module, solid MDF infill both faces
EssentialKES 12,200
Select · recommendedKES 17,600
ModernKES 25,700
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.
- Standard sizes

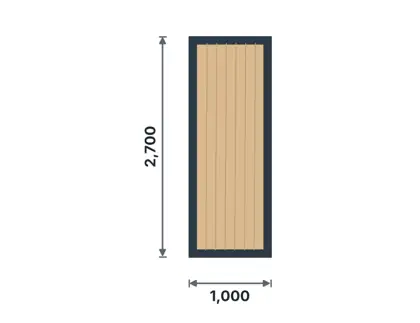

- 1000 × 2700 mm
- Typical location
- Offices, consulting rooms, stores
- Material & construction
- Frame: Aluminium alloy 6063-T5/T6 extrusions, box section. Infill: 9–12 mm MDF panels, melamine or laminate faced, both sides (cavity optionally insulated).
- Specification
- System: shopfront box section 44.5 × 101.6 mm (1¾" × 4") perimeter with 44.5 × 50.8 mm (1¾" × 2") intermediates; snap-in glazing beads; wall 1.2–1.6 mm. Infill: MDF panels both faces on aluminium frame; mineral-wool infill optional for sound. Finish: polyester powder coat 60–80 µm (black, charcoal grey, bronze, white) or silver anodised.
- Hardware & consumables
- Box-section frame & intermediates; shear blocks/transom clips; snap-in beads; wedge gaskets; hammer-fix anchors to floor, ceiling and walls; end caps; silicone sealant. MDF panels; laminate; contact adhesive; mineral wool (optional).
