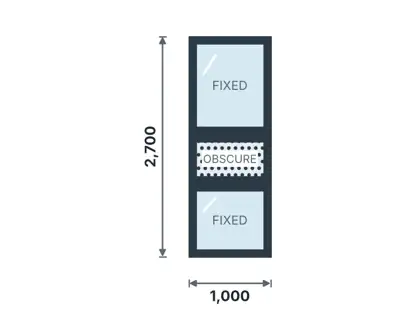

PG-03 Slim office partition with frosted band technical drawing, viewed from outside
Drawing viewed from outside · dimensions in mm

PG-03

Slim office partition with frosted bandAluminium partition – glazed

Partitions & cubicles · 1 module, glass with frosted privacy band

EssentialKES 14,900
Select · recommendedKES 21,600
ModernKES 35,100

Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.

Standard sizes
1000 × 2700 mm
Typical location
Modern offices, meeting rooms
Material & construction
Frame: Aluminium alloy 6063-T5/T6 extrusions, slim partition profile. Infill: glass – 6 mm clear toughened safety glass with frosted film band 900–1500 mm.
Specification
System: slim office partition profile (~35–50 mm face), floor & ceiling channels with spring-loaded deflection head; beaded glazing. Glazing: 6 mm clear toughened safety glass. Finish: polyester powder coat 60–80 µm (black, charcoal grey, bronze, white) or silver anodised.
Hardware & consumables
Floor & ceiling channels; vertical posts; glazing beads + gaskets; deflection head; joint connectors; hammer-fix anchors; silicone; frosted manifestation film band at 900–1500 mm.
