PG-02
Glazed partition, box section, tallAluminium partition – glazed
Partitions & cubicles · 1 module, full-height glass
EssentialKES 16,500
Select · recommendedKES 24,000
ModernKES 39,000
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.

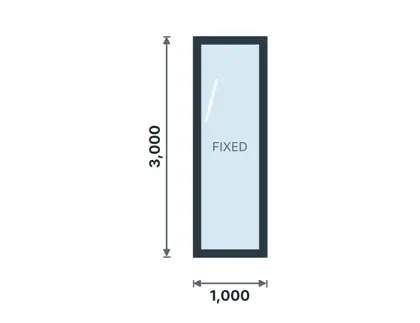

- Standard sizes
- 1000 × 3000 mm
- Typical location
- Offices with 3000 ceiling
- Material & construction
- Frame: Aluminium alloy 6063-T5/T6 extrusions, shopfront box section. Infill: glass – 6 mm clear toughened safety glass.
- Specification
- System: shopfront box section 44.5 × 101.6 mm (1¾" × 4") perimeter with 44.5 × 50.8 mm (1¾" × 2") intermediates; snap-in glazing beads; wall 1.2–1.6 mm. Glazing: 6 mm clear toughened safety glass. Finish: polyester powder coat 60–80 µm (black, charcoal grey, bronze, white) or silver anodised.
- Hardware & consumables
- Box-section frame & intermediates; shear blocks/transom clips; snap-in beads; wedge gaskets; hammer-fix anchors to floor, ceiling and walls; end caps; silicone sealant. Manifestation film band.
