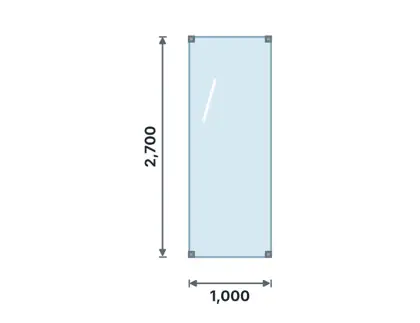

PF-01 Frameless glass partition technical drawing, viewed from outside
Drawing viewed from outside · dimensions in mm

PF-01

Frameless glass partitionFrameless glass partition

Partitions & cubicles · 1 panel, 10–12 mm toughened

EssentialKES 24,300
Select · recommendedKES 33,900
ModernKES 47,200

Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.

Standard sizes
1000 × 2700 mm
Typical location
Boardroom, showroom, executive office
Material & construction
No visible frame. Infill: 10 mm clear toughened safety glass, polished edges in slim aluminium floor & ceiling channels.
Specification
System: frameless glass in aluminium U-channels top & bottom; polycarbonate H-joints or clear silicone between panels; patch fittings at doors. Finish: polyester powder coat 60–80 µm (black, charcoal grey, bronze, white) or silver anodised.
Hardware & consumables
Aluminium U-channels; setting blocks; glazing wedges/gaskets; H-joint strips; clear silicone; stainless patch fittings (doors); anchors.
