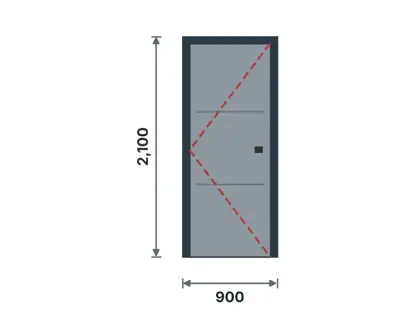

DU-01 Steel utility door, single technical drawing, viewed from outside
Drawing viewed from outside · dimensions in mm

DU-01

Steel utility door, singleUtility steel door

Doors · 1 leaf, hinged

EssentialKES 17,100
Select · recommendedKES 24,300
ModernKES 34,400

Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.

Standard sizes
900 × 2100 mm
Typical location
Store, DSQ, meter room
Material & construction
Frame: mild-steel pressed or angle frame. Leaf: mild-steel sheet (16–18 gauge) on steel rails.
Specification
Leaf 40–45 mm; stiffened with steel rails. Finish: primer + enamel.
Hardware & consumables
Mild-steel frame with built-in lugs; 3 welded/bolted hinges per leaf; mortice lock + keys; lever handle; padbolt or tower bolts; red-oxide primer + 2 coats enamel paint; cement mortar for fixing.
