DM-01

Aluminium door – MDF panel infillAluminium MDF-infill door

Doors · 1 leaf, solid MDF infill

Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.

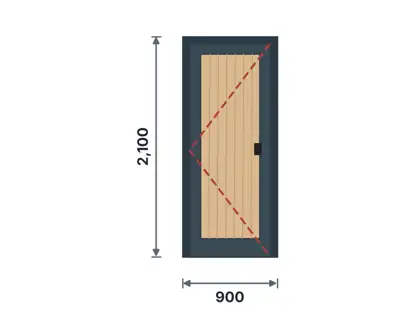

Standard sizes

900 × 2100 mm

Typical location

Office, bedroom, consulting room

Material & construction

Frame & leaf: Aluminium alloy 6063-T5/T6 extrusions. Infill: 9–12 mm MDF panel, melamine or wood-grain laminate both faces, in aluminium stiles.

Specification

System: aluminium door stiles & rails 45 mm deep, wide stiles ~100 mm, mid/kick rail; 44.5 × 101.6 mm (1¾" × 4") frame; wall 1.6–2.0 mm. Infill: MDF panel laminated both faces, held in snap beads with gaskets; moisture-resistant MDF for wet areas. Finish: polyester powder coat 60–80 µm (black, charcoal grey, bronze, white) or silver anodised.

Hardware & consumables

3 heavy-duty butt hinges per leaf (4 if leaf > 2100 mm); mortice lock with euro cylinder + 3 keys; lever handle set; floor door stop; flush bolts top & bottom on inactive leaf (double doors); EPDM gaskets; brush or drop-down threshold seal; aluminium threshold plate; frame anchors at ≤ 600 mm; packers; silicone sealant; door closer optional. MDF panel; laminate; contact adhesive; edge sealing.
