DL-06

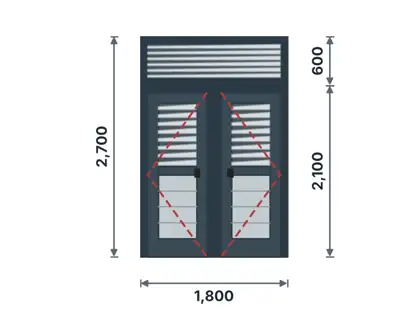

Plant-room double door with louvre fanlightAluminium louvre-top door
Doors · 2 vented leaves 2100 high + fixed louvre fanlight 600
EssentialKES 40,900
Select · recommendedKES 59,900
ModernKES 90,600
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.
- Standard sizes
- 1800 × 2700 mm
- Typical location
- Generator room, plant room, transformer room
- Material & construction
- Frame: Aluminium alloy 6063-T5/T6 extrusions with transom. Leaves: aluminium, louvre top half + ACP bottom. Fanlight: fixed aluminium weather louvre + mesh.
- Specification
- System: aluminium door stiles & rails 45 mm deep, wide stiles ~100 mm, mid/kick rail; 44.5 × 101.6 mm (1¾" × 4") frame; wall 1.6–2.0 mm. Maximum ventilation; heavy-duty hinges; panic bar option. Finish: polyester powder coat 60–80 µm (black, charcoal grey, bronze, white) or silver anodised.
- Hardware & consumables
- 3 heavy-duty butt hinges per leaf (4 if leaf > 2100 mm); mortice lock with euro cylinder + 3 keys; lever handle set; floor door stop; flush bolts top & bottom on inactive leaf (double doors); EPDM gaskets; brush or drop-down threshold seal; aluminium threshold plate; frame anchors at ≤ 600 mm; packers; silicone sealant; door closer optional. Louvre blades & clips; insect mesh; ACP panels; panic bar optional.
