DL-05

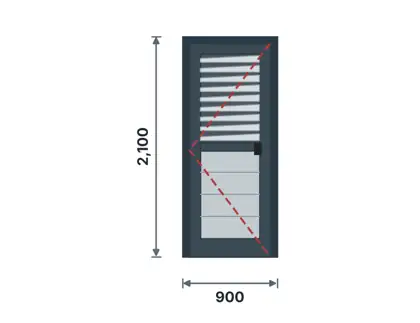

Vented utility door (louvres top half)Aluminium louvre-top door
Doors · 1 leaf: aluminium louvre top half, aluminium panel bottom half
EssentialKES 17,100
Select · recommendedKES 25,700
ModernKES 40,100
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.
- Standard sizes
- 900 × 2100 mm
- Typical location
- Meter room, store, gas cage, pump room
- Material & construction
- Frame & leaf: Aluminium alloy 6063-T5/T6 extrusions. Infill: fixed aluminium weather louvre top half (insect mesh) + ACP panel bottom half.
- Specification
- System: aluminium door stiles & rails 45 mm deep, wide stiles ~100 mm, mid/kick rail; 44.5 × 101.6 mm (1¾" × 4") frame; wall 1.6–2.0 mm. Louvre infill: 45° weather blades with mesh. Finish: polyester powder coat 60–80 µm (black, charcoal grey, bronze, white) or silver anodised.
- Hardware & consumables
- 3 heavy-duty butt hinges per leaf (4 if leaf > 2100 mm); mortice lock with euro cylinder + 3 keys; lever handle set; floor door stop; flush bolts top & bottom on inactive leaf (double doors); EPDM gaskets; brush or drop-down threshold seal; aluminium threshold plate; frame anchors at ≤ 600 mm; packers; silicone sealant; door closer optional. Louvre blades & clips; insect mesh; ACP panel.
