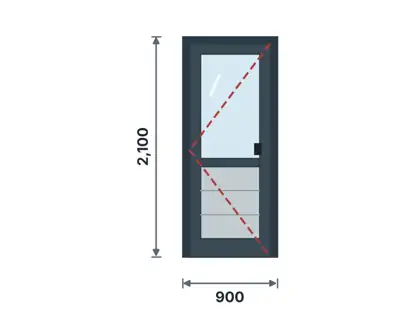

DK-01

Aluminium semi-solid door (glass top, panel bottom)Aluminium semi-solid door

Doors · 1 leaf: glass above mid-rail, aluminium panel below

Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.

Standard sizes

900 × 2100 mm

Typical location

Kitchen, office, shop back door

Material & construction

Frame & leaf: Aluminium alloy 6063-T5/T6 extrusions, with mid-rail at ~900 mm. Infill: 6 mm clear toughened safety glass above; aluminium panel (ACP) below.

Specification

System: aluminium door stiles & rails 45 mm deep, wide stiles ~100 mm, mid/kick rail; 44.5 × 101.6 mm (1¾" × 4") frame; wall 1.6–2.0 mm. Glazing: 6 mm clear toughened safety glass. Bottom infill: ACP kick panel. Finish: polyester powder coat 60–80 µm (black, charcoal grey, bronze, white) or silver anodised.

Hardware & consumables

3 heavy-duty butt hinges per leaf (4 if leaf > 2100 mm); mortice lock with euro cylinder + 3 keys; lever handle set; floor door stop; flush bolts top & bottom on inactive leaf (double doors); EPDM gaskets; brush or drop-down threshold seal; aluminium threshold plate; frame anchors at ≤ 600 mm; packers; silicone sealant; door closer optional. ACP kick panel; panel gaskets.
