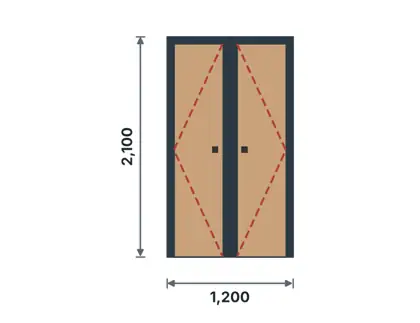

DI-04 Double flush door technical drawing, viewed from outside
Drawing viewed from outside · dimensions in mm

DI-04

Double flush doorInternal door

Doors · 2 leaves, hinged

EssentialKES 15,100
Select · recommendedKES 25,200
ModernKES 47,300

Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.

Standard sizes
1200 × 2100 mm
Typical location
Lounge to dining, study
Material & construction
Frame: hardwood door frame. Leaves: 2 × 40 mm flush doors, timber core with veneer skins.
Specification
Leaves 40 mm; rebated meeting stiles; flush bolts on one leaf. Finish: paint or varnish.
Hardware & consumables
Hardwood door frame with hoop-iron holdfasts; architraves both sides; 3 steel/brass butt hinges 100 mm; mortice lock (2- or 3-lever) + keys; lever handle set; door stop; wood primer, filler and 2 coats paint/varnish; nails, screws and wood glue. Flush bolts (2) on inactive leaf.
