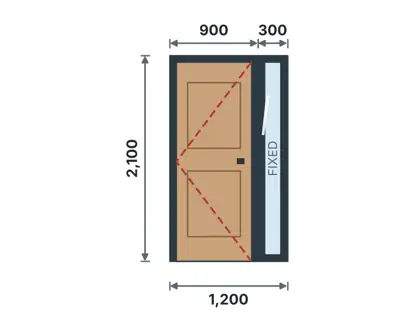

DE-02 Entrance door with side light technical drawing, viewed from outside
Drawing viewed from outside · dimensions in mm

DE-02

Entrance door with side lightExternal entrance door

Doors · Leaf 900 + fixed glass side light 300

EssentialKES 34,200
Select · recommendedKES 58,400
ModernKES 108,200

Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.

Standard sizes
1200 × 2100 mm
Typical location
Main entrance
Material & construction
Frame: hardwood with mullion. Leaf: solid hardwood panelled door. Side light: 6 mm toughened safety glass, sandblasted/frosted.
Specification
Leaf 45–50 mm; side light in beaded rebate. Finish: exterior varnish.
Hardware & consumables
Hardwood door frame with hoop-iron holdfasts; architraves both sides; 3 steel/brass butt hinges 100 mm; mortice lock (2- or 3-lever) + keys; lever handle set; door stop; wood primer, filler and 2 coats paint/varnish; nails, screws and wood glue. Glazing beads, glazing silicone.
