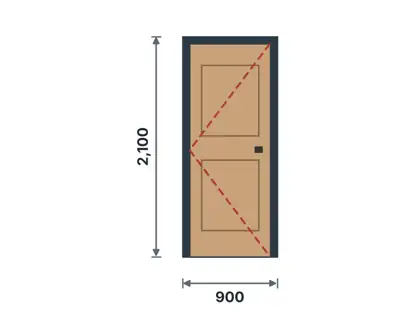

DE-01 Panelled entrance door technical drawing, viewed from outside
Drawing viewed from outside · dimensions in mm

DE-01

Panelled entrance doorExternal entrance door

Doors · 1 leaf, hinged

EssentialKES 26,700
Select · recommendedKES 45,800
ModernKES 86,200

Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.

Standard sizes
900 × 2100 mm
Typical location
Main entrance
Material & construction
Frame: hardwood. Leaf: solid hardwood panelled door (mahogany/mvule/meranti), 45–50 mm.
Specification
Leaf 45–50 mm, raised panels, weather-board at bottom; frame 50 × 125 mm rebated. Finish: exterior varnish/stain, UV-resistant.
Hardware & consumables
Hardwood door frame with hoop-iron holdfasts; architraves both sides; 3 steel/brass butt hinges 100 mm; mortice lock (2- or 3-lever) + keys; lever handle set; door stop; wood primer, filler and 2 coats paint/varnish; nails, screws and wood glue. Cylinder deadlock; door viewer; weather-board; drip mould.
