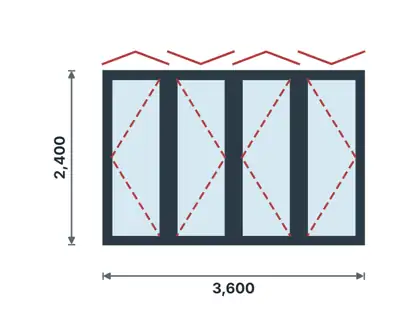

DB-01
Bi-fold door, 4 leavesAluminium bi-fold door
Doors · 4 folding leaves
EssentialKES 126,000
Select · recommendedKES 173,200
ModernKES 259,900
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.
- Standard sizes
- 3600 × 2400 mm
- Typical location
- Living to garden, entertainment area
- Material & construction
- Frame & leaves: Aluminium alloy 6063-T5/T6 extrusions, bi-fold system. Infill: glass – 6 mm clear toughened safety glass.
- Specification
- System: Euro-groove casement 50 series, wall 1.4–1.6 mm; double EPDM seals; crimped and glued corners; beaded glazing. Glazing: 6 mm clear toughened safety glass. Top-hung bi-fold on stainless rollers; bottom guide; multi-point locking. Finish: polyester powder coat 60–80 µm (black, charcoal grey, bronze, white) or silver anodised.
- Hardware & consumables
- Top track & roller carriages; bottom guide track; folding hinges; multi-point locks + handles; drop bolts; EPDM seals; threshold; neutral-cure silicone sealant (perimeter, both faces); backer rod; PU expanding foam to gaps > 10 mm; plastic packers/shims; frame fixing screws + 8 mm nylon plugs.
