AF-06

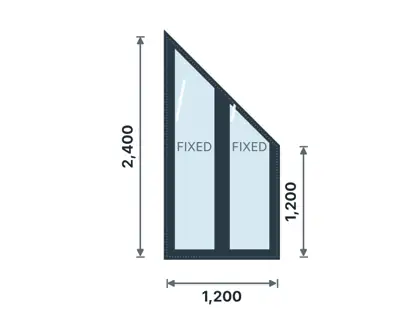

Raked fixed window pairA-frame gable glazing
A-frame & gable · 2 fixed raked lights, 1 mullion; short side 1200 mm
EssentialKES 19,400
Select · recommendedKES 28,100
ModernKES 43,200
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.
- Standard sizes
- 1200 × 2400 mm
- Typical location
- Gable ends beside the apex
- Material & construction
- Frame: Aluminium alloy 6063-T5/T6 extrusions, raked box section. Infill: glass – 6.38 mm clear laminated safety glass (PVB interlayer).
- Specification
- System: shopfront box section 44.5 × 101.6 mm (1¾" × 4") perimeter with 44.5 × 50.8 mm (1¾" × 2") intermediates; snap-in glazing beads; wall 1.2–1.6 mm. Glazing: 6.38 mm clear laminated safety glass (PVB interlayer). Finish: polyester powder coat 60–80 µm (black, charcoal grey, bronze, white) or silver anodised.
- Hardware & consumables
- Box-section frame & intermediates; shear blocks/transom clips; snap-in beads; wedge gaskets; hammer-fix anchors to floor, ceiling and walls; end caps; silicone sealant. Raked mitre cleats.
