AF-05

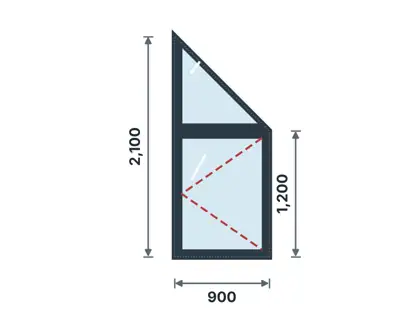

Raked window with casement (handed)A-frame gable glazing
A-frame & gable · Casement 900 × 1200 below + fixed raked light above; left or right hand
EssentialKES 13,400
Select · recommendedKES 19,400
ModernKES 29,800
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.
- Standard sizes
- 900 × 2100 mm
- Typical location
- Side walls under A-frame slope, gable ends
- Material & construction
- Frame: Aluminium alloy 6063-T5/T6 extrusions, casement 50 series with raked head. Infill: glass – 6 mm clear toughened safety glass.
- Specification
- System: Euro-groove casement 50 series, wall 1.4–1.6 mm; double EPDM seals; crimped and glued corners; beaded glazing. Glazing: 6 mm clear toughened safety glass. Raked head cut to roof pitch. Finish: polyester powder coat 60–80 µm (black, charcoal grey, bronze, white) or silver anodised.
- Hardware & consumables
- Espagnolette multi-point lock with keyed handle; 3D-adjustable hinges or stainless friction stays; double EPDM gaskets; setting & distance blocks; crimp corner cleats + two-part corner adhesive; drainage caps; restrictors; neutral-cure silicone sealant (perimeter, both faces); backer rod; PU expanding foam to gaps > 10 mm; plastic packers/shims; frame fixing screws + 8 mm nylon plugs. Raked mitre cleats.
