AF-04

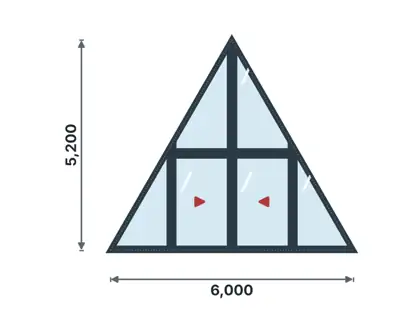

A-frame front with sliding doorsA-frame gable glazing

A-frame & gable · Full triangular gable: fixed glazing + 3000 × 2400 sliding door (60° pitch)

Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.

Standard sizes

6000 × 5200 mm

Typical location

Large A-frame house, lodge

Material & construction

Frame: Aluminium alloy 6063-T5/T6 extrusions, curtain-wall stick system + slim sliding door. Infill: glass – 6.38 mm clear laminated safety glass (PVB interlayer) fixed; 6 mm clear toughened safety glass doors.

Specification

System: curtain-wall stick system, mullions ~50 × 100–150 mm and transoms; pressure-plate and cover-cap glazing; raked members cut to the roof pitch; designed to wind load for the site. Glazing: 6.38 mm clear laminated safety glass (PVB interlayer). Sliding door: slim-interlock system, 2 sliding panels. Finish: polyester powder coat 60–80 µm (black, charcoal grey, bronze, white) or silver anodised.

Hardware & consumables

Mullion & transom extrusions; transom stub joints; pressure plates + snap cover caps; inner/outer EPDM gaskets; setting blocks; galvanised/stainless anchor brackets; chemical or expansion anchors into ring beam and rafters; head flashing at roof junction; structural/weather silicone + backer rod; vent/drain caps. Sliding door: tandem rollers, multi-point hook lock, flush pulls, sill drain.
