AF-02

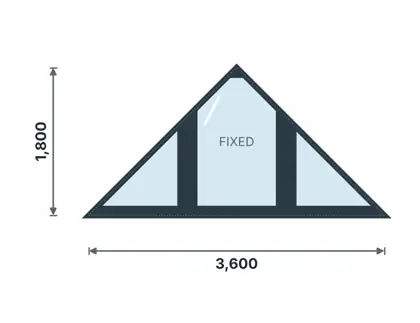

Gable triangle, 3 baysA-frame gable glazing
A-frame & gable · Fixed triangle, 2 mullions (45° pitch)
EssentialKES 29,200
Select · recommendedKES 42,100
ModernKES 64,800
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.
- Standard sizes
- 3600 × 1800 mm
- Typical location
- Gable above wall plate, living room
- Material & construction
- Frame: Aluminium alloy 6063-T5/T6 extrusions, curtain-wall stick system. Infill: glass – 6.38 mm clear laminated safety glass (PVB interlayer).
- Specification
- System: curtain-wall stick system, mullions ~50 × 100–150 mm and transoms; pressure-plate and cover-cap glazing; raked members cut to the roof pitch; designed to wind load for the site. Glazing: 6.38 mm clear laminated safety glass (PVB interlayer). Finish: polyester powder coat 60–80 µm (black, charcoal grey, bronze, white) or silver anodised.
- Hardware & consumables
- Mullion & transom extrusions; transom stub joints; pressure plates + snap cover caps; inner/outer EPDM gaskets; setting blocks; galvanised/stainless anchor brackets; chemical or expansion anchors into ring beam and rafters; head flashing at roof junction; structural/weather silicone + backer rod; vent/drain caps.
