AF-01

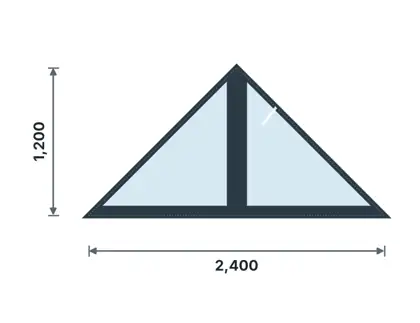

Gable apex triangle (fixed)A-frame gable glazing
A-frame & gable · Fixed triangle, 1 central mullion (45° pitch)
EssentialKES 13,000
Select · recommendedKES 18,700
ModernKES 28,800
Indicative starting price for the smallest standard size, excluding VAT and installation. Confirmed after site measurement.
- Standard sizes
- 2400 × 1200 mm
- Typical location
- Gable apex of A-frame or pitched roof
- Material & construction
- Frame: Aluminium alloy 6063-T5/T6 extrusions, raked box section. Infill: glass – 6.38 mm clear laminated safety glass (PVB interlayer).
- Specification
- System: shopfront box section 44.5 × 101.6 mm (1¾" × 4") perimeter with 44.5 × 50.8 mm (1¾" × 2") intermediates; snap-in glazing beads; wall 1.2–1.6 mm. Glazing: 6.38 mm clear laminated safety glass (PVB interlayer). Raked members mitred to roof pitch; head sealed to roof flashing. Finish: polyester powder coat 60–80 µm (black, charcoal grey, bronze, white) or silver anodised.
- Hardware & consumables
- Box-section frame & intermediates; shear blocks/transom clips; snap-in beads; wedge gaskets; hammer-fix anchors to floor, ceiling and walls; end caps; silicone sealant. Raked mitre cleats; roof-junction flashing; extra silicone at apex.
